Description
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.

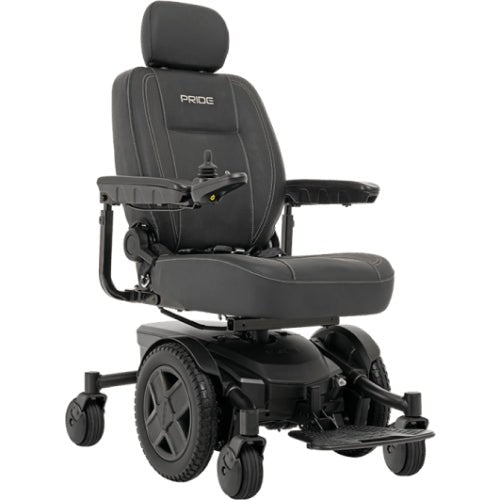

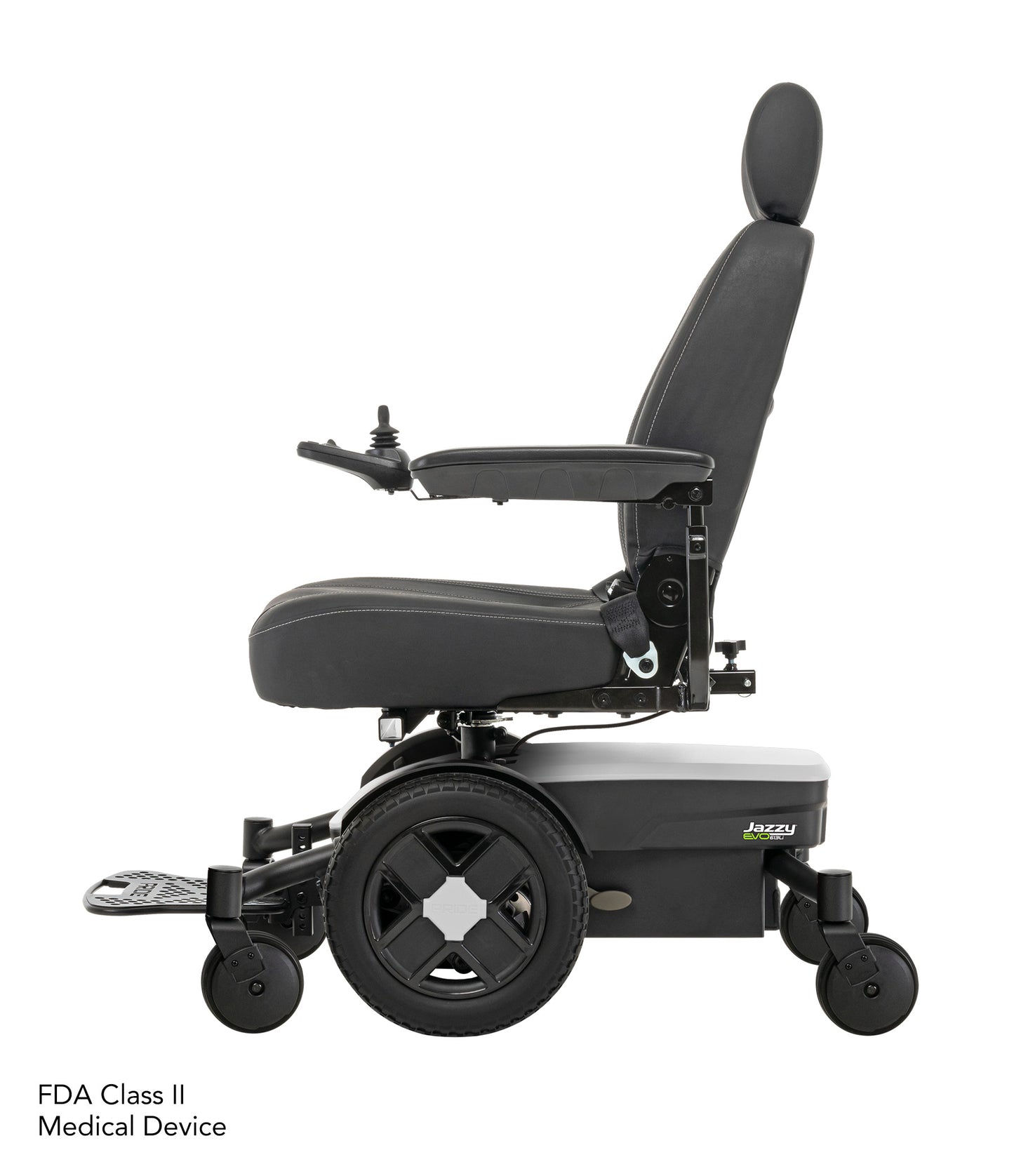

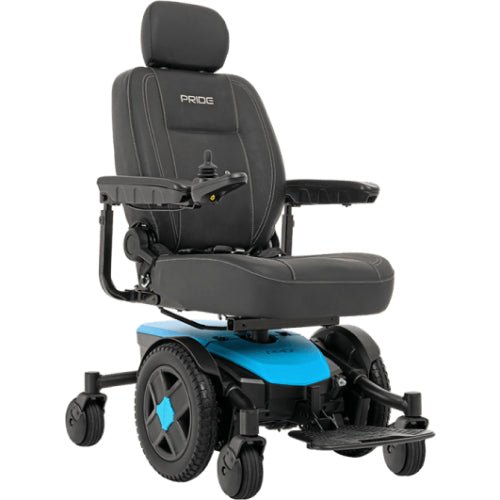

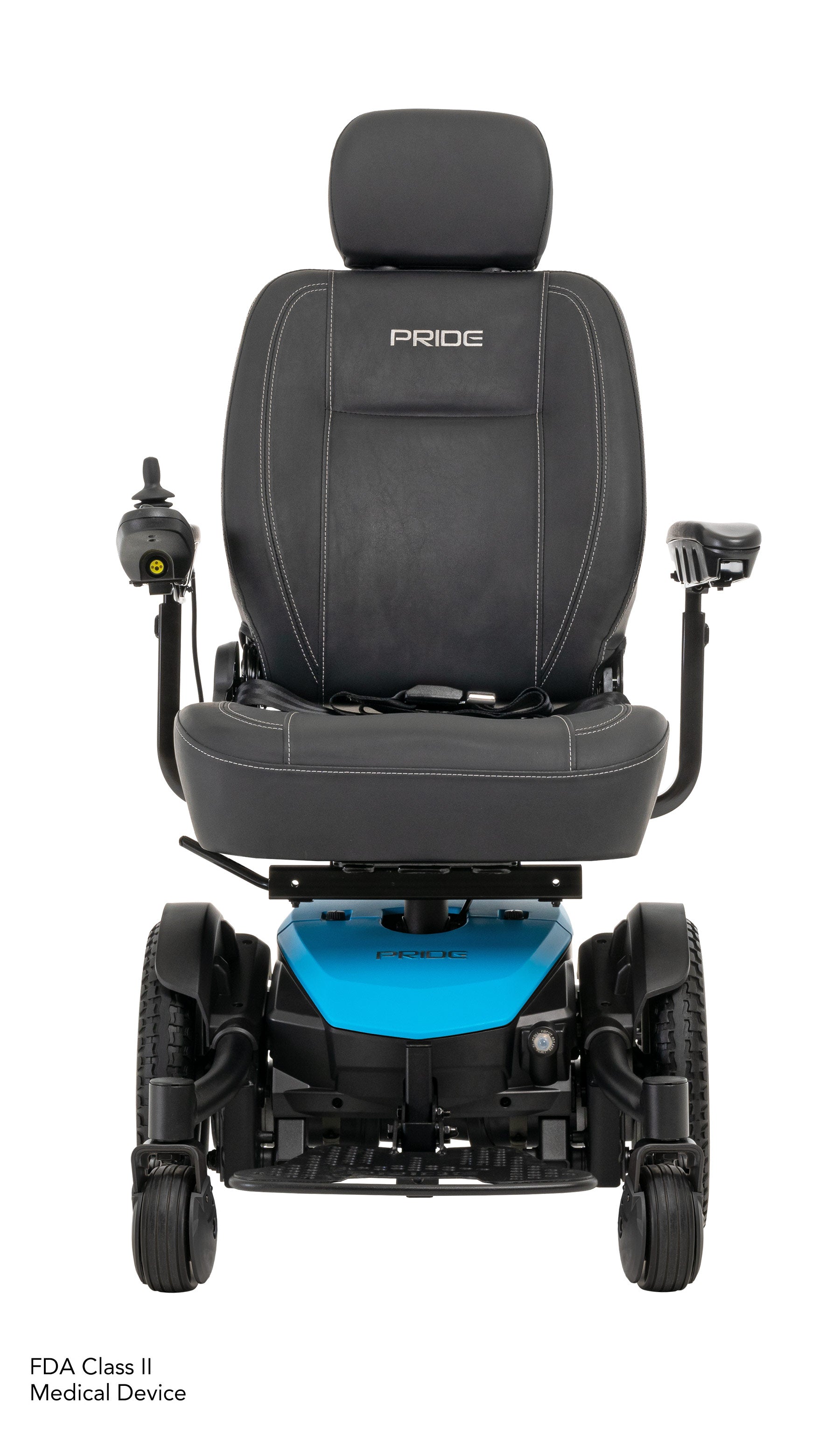

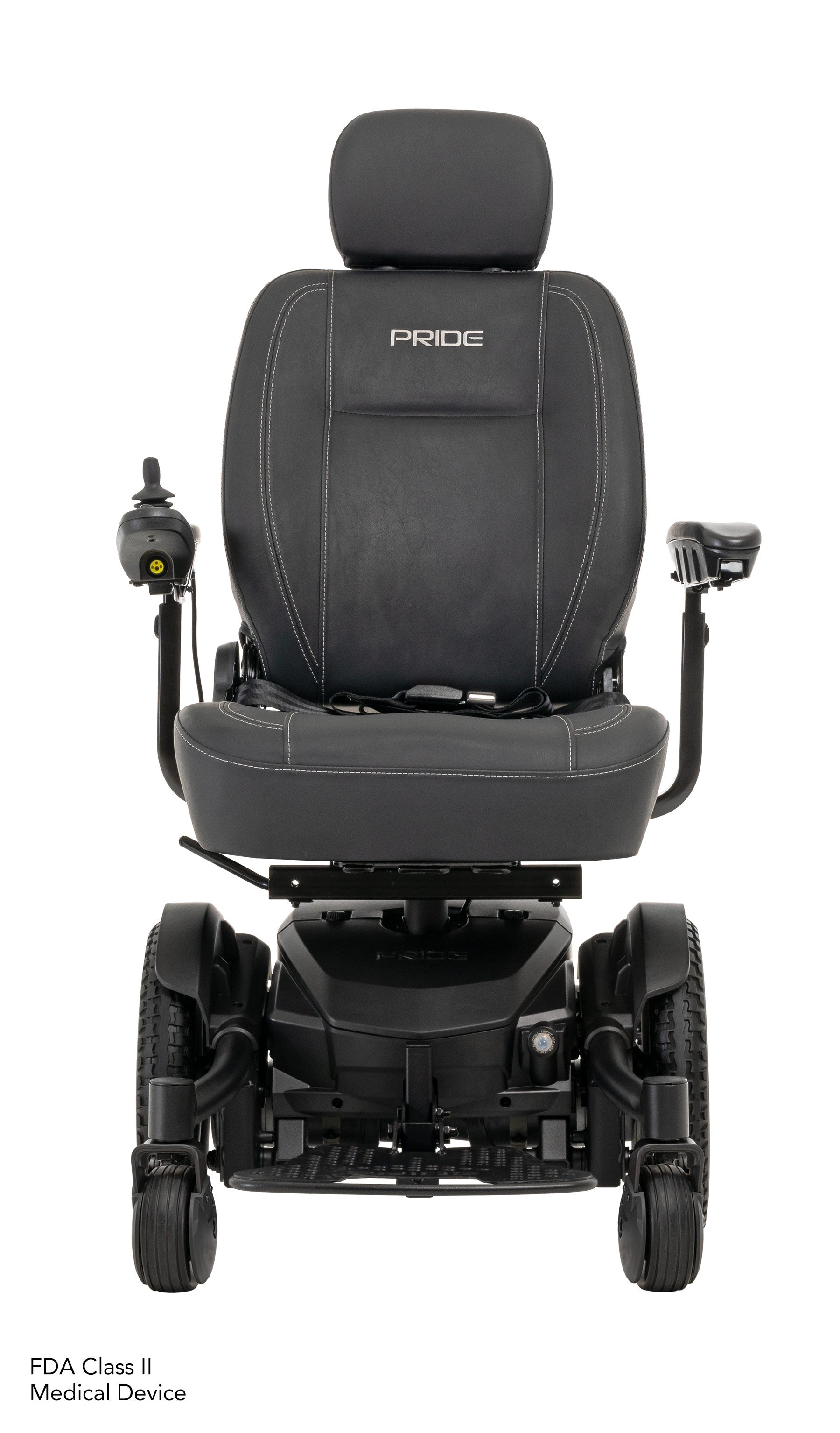

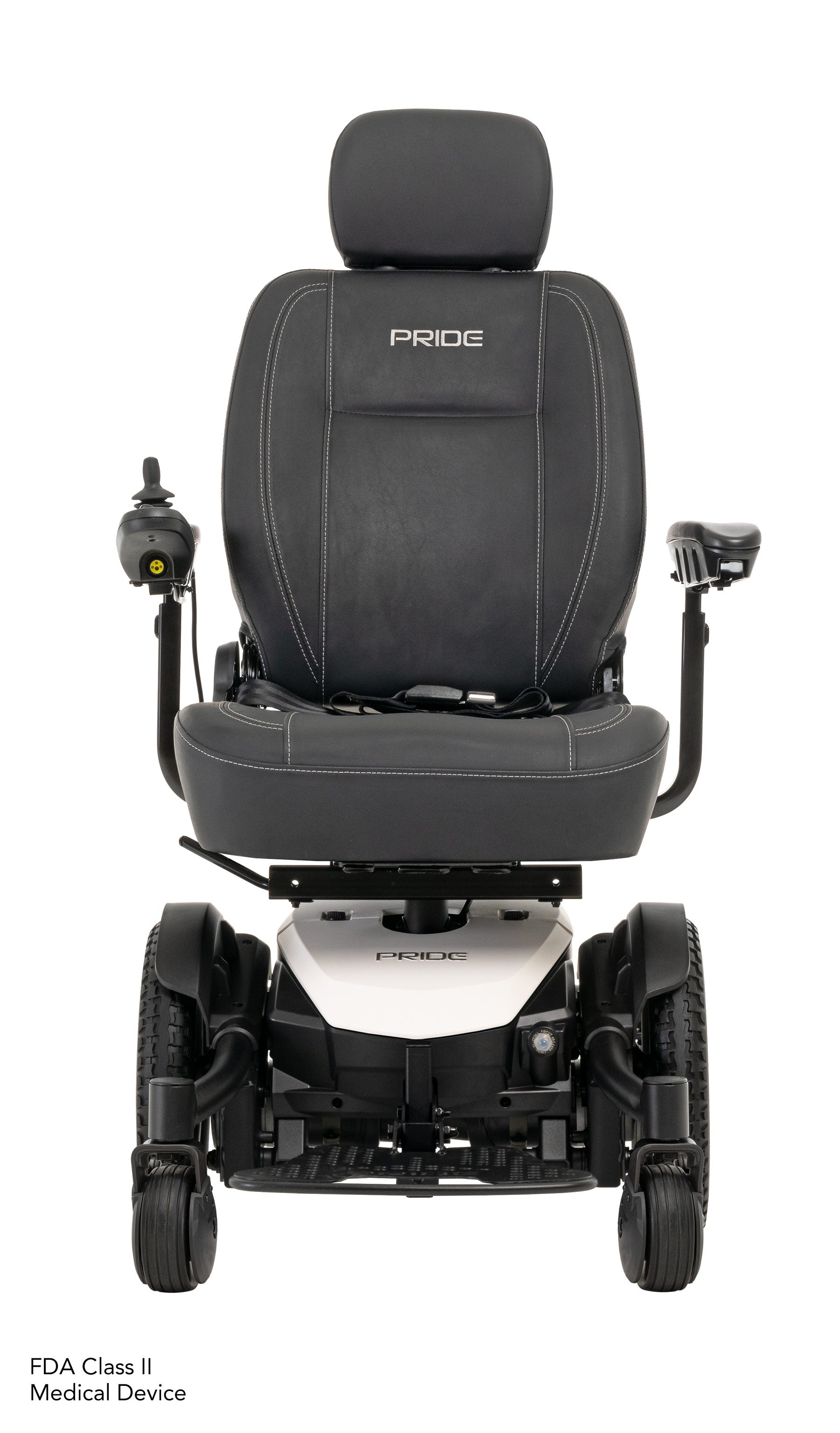

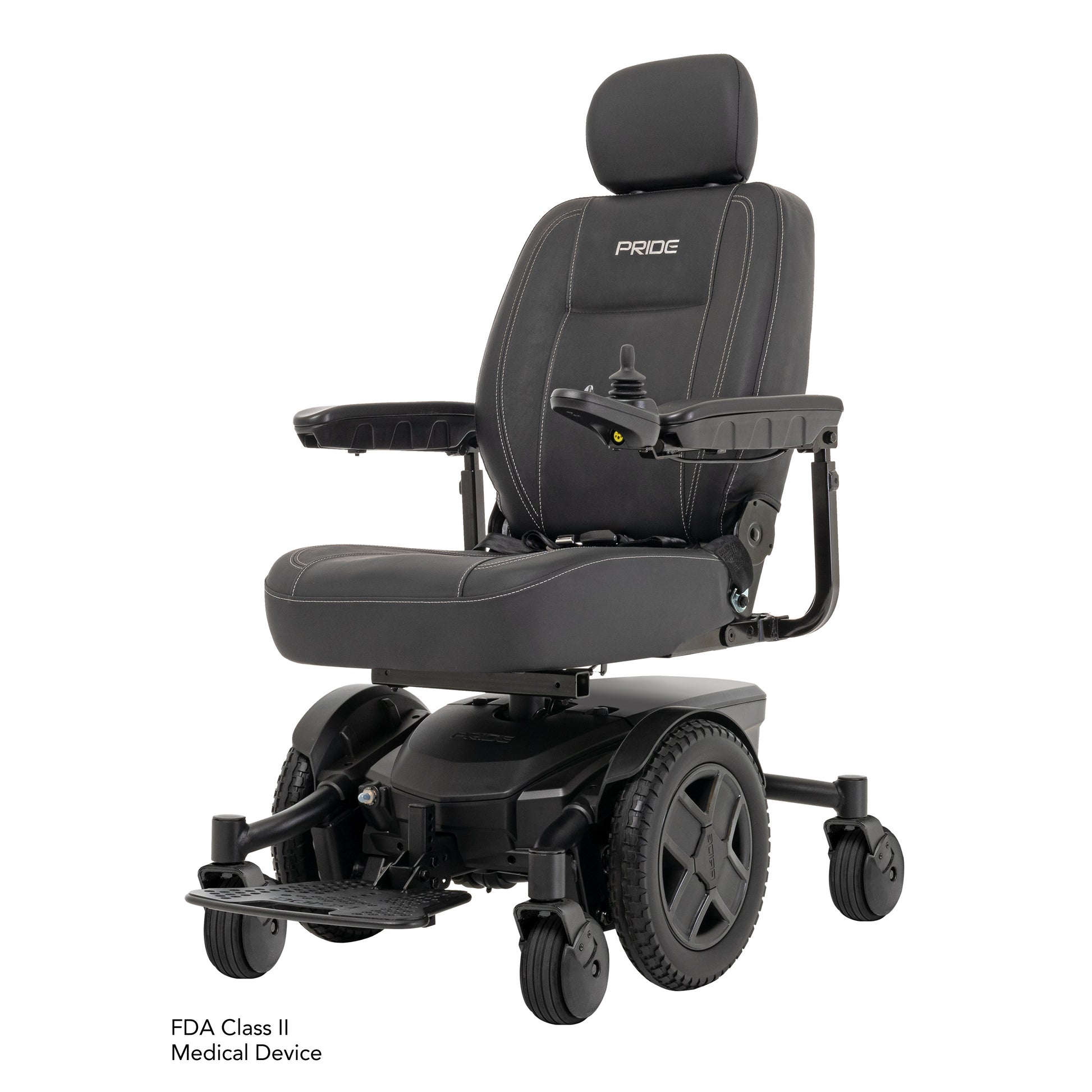

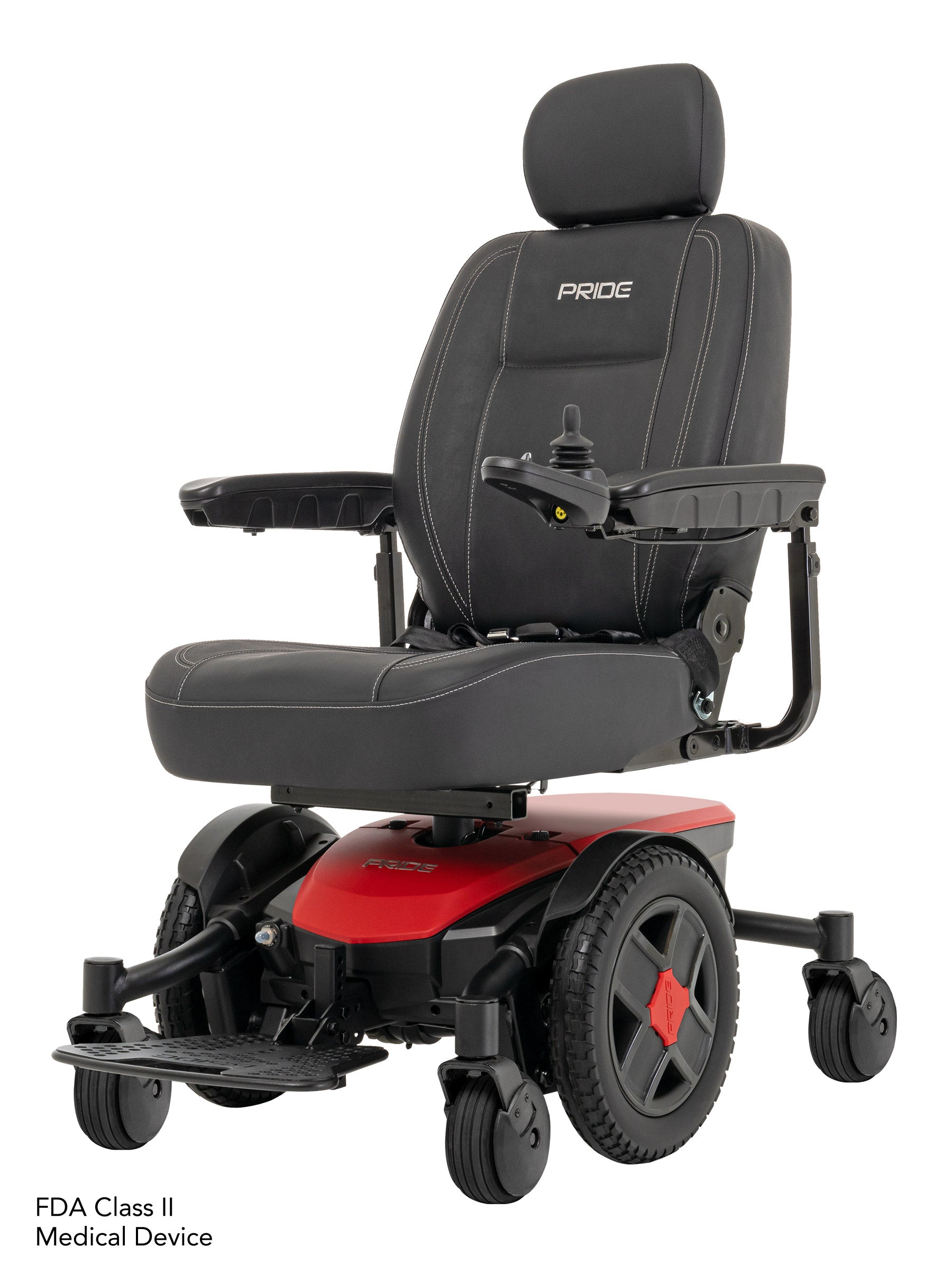

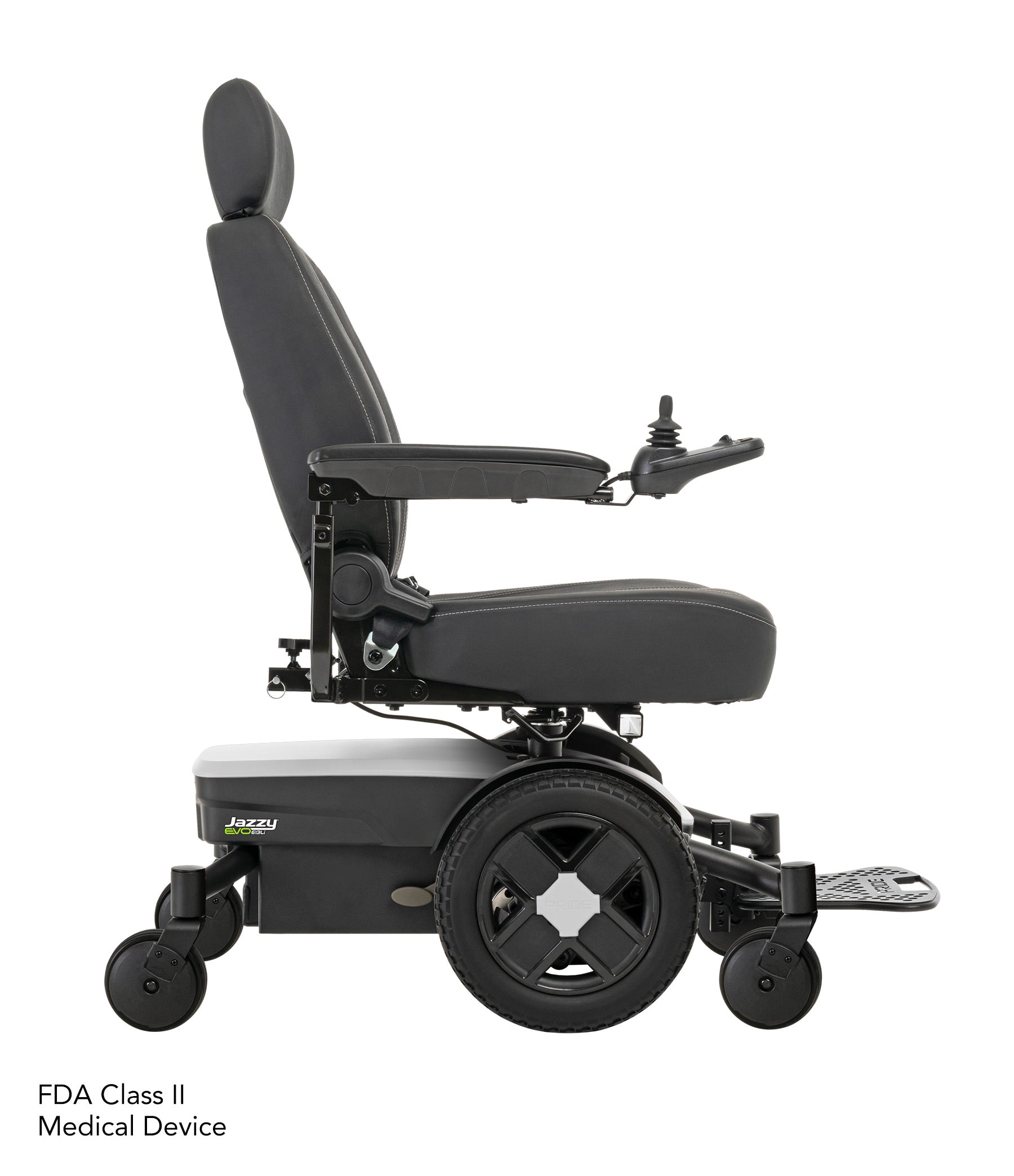

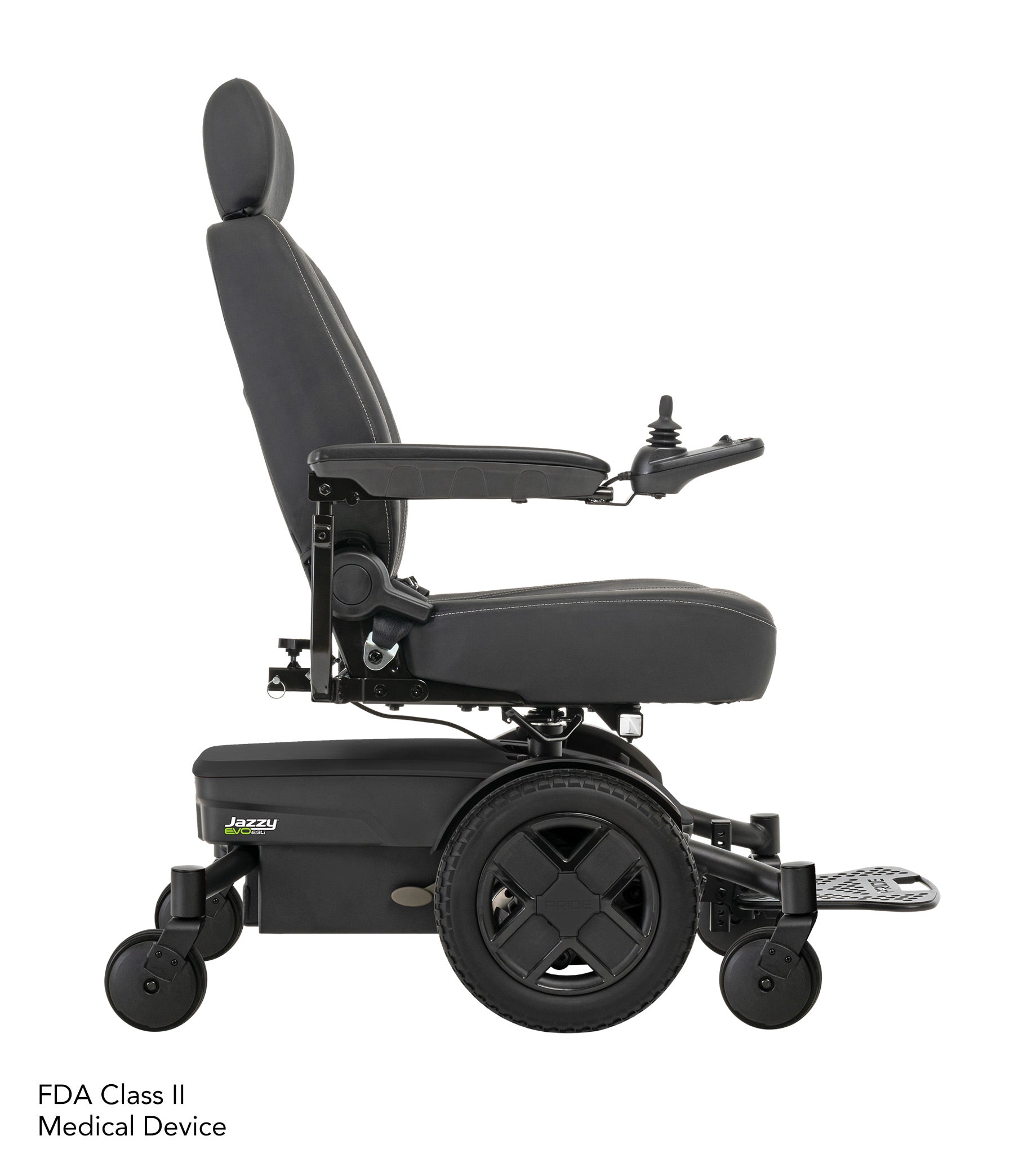

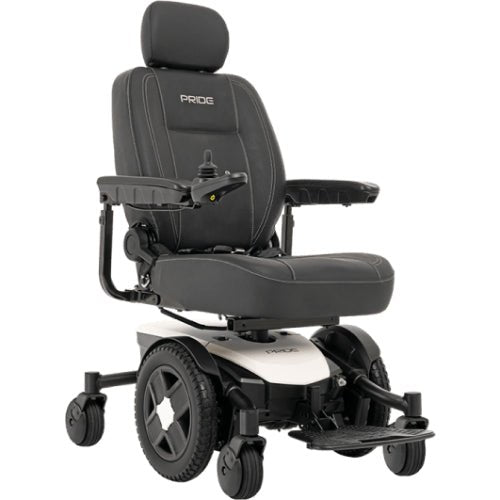

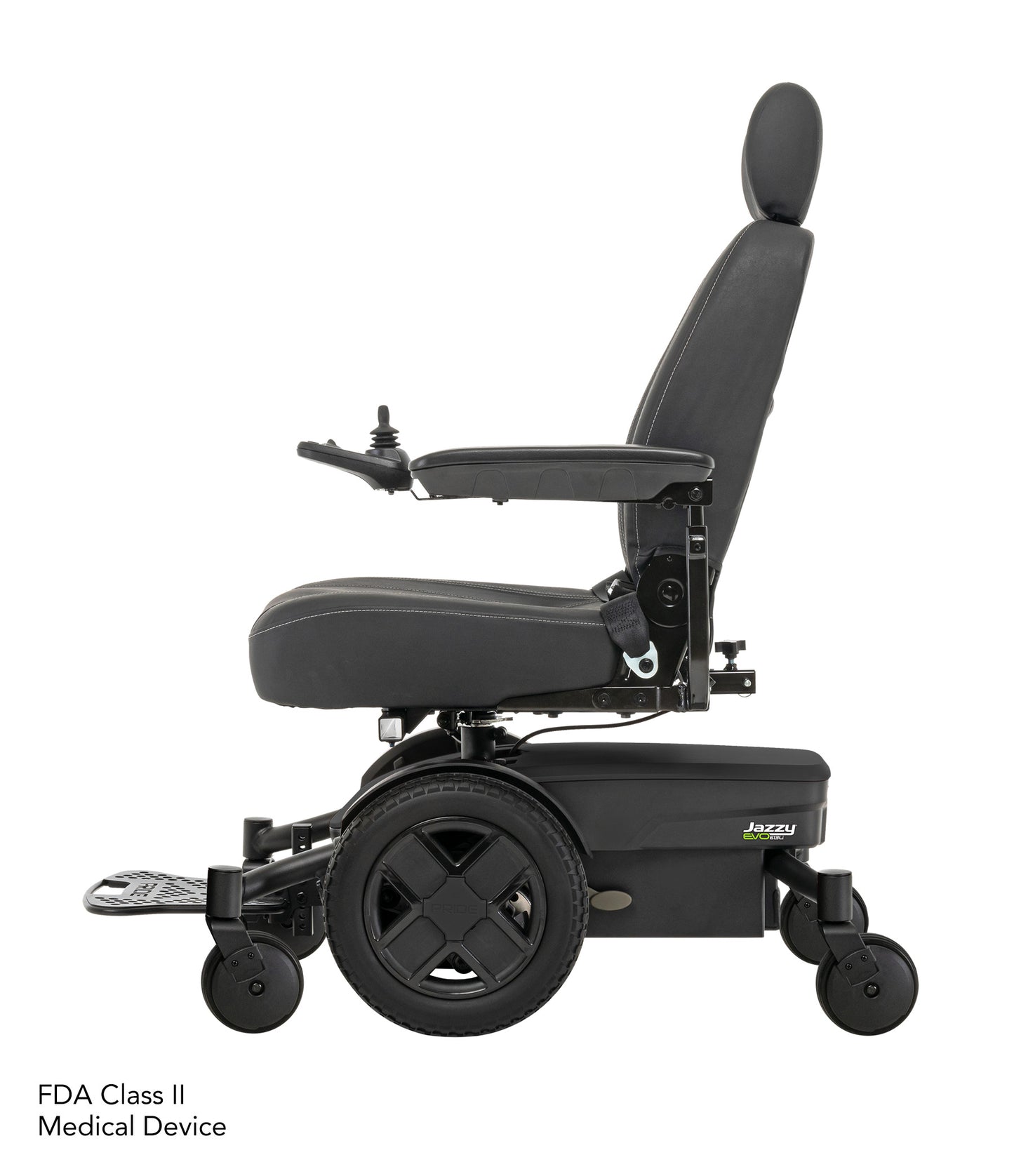

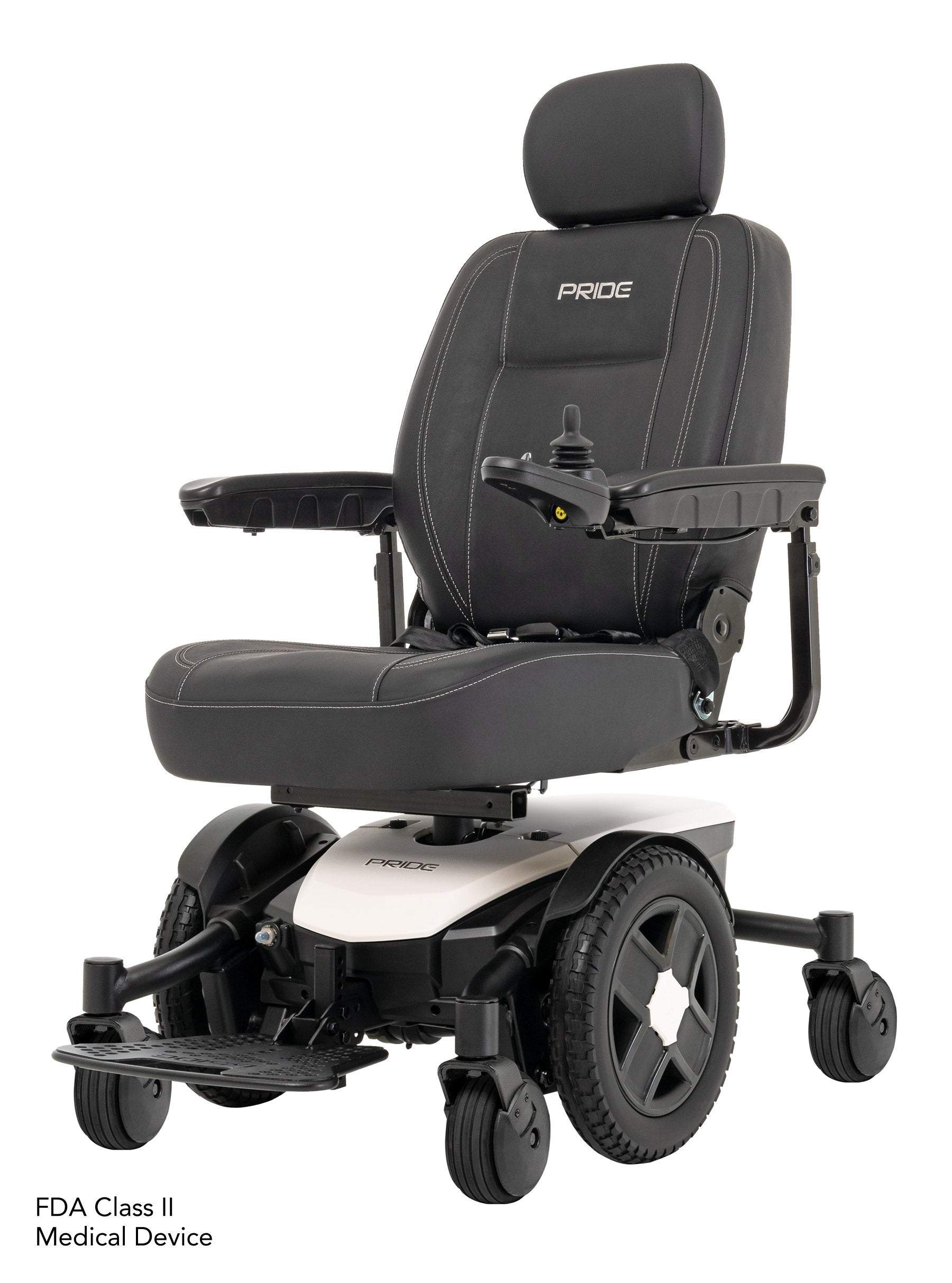

The all new Medicare-reimbursable Jazzy EVO 613 series is here! The Jazzy EVO 613 series provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”. The Jazzy EVO 613Li uses a lithium-ion battery that provides longer life and more convenient charging.
The Jazzy EVO 613 and Jazzy EVO 613Li measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable.
Explore convenience with our flexible set-up and delivery options tailored to your preferences. Opt for the ultimate "Premier In-Home Delivery and Set-up," where our team handles everything from unboxing to assembly, providing detailed instructions along with seamless delivery to your doorstep. For those who prefer a hands-on approach, we offer "In-store Pickup," allowing you to pay a nominal in-store fee for us to unbox, assemble, and provide guidance, all within the store premises. Choose the option that suits you best and let us make your experience hassle-free!
Features
- 300 lb. weight capacity
- Narrow base width of only 22"
- Maximum speed up to 5.1 mph
- 3" Ground clearance
- 13" solid drive tires
- Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
- Mid-wheel 6 Technology offers tight turning radius around doorways and corners
- Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
- Memory foam high-back seat with single seat post allows the user to swivel
- Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
- Height, width, and angle adjustable armrests
- Flip-up, height, angle, and depth adjustable foot platform
- Removable matte-finish color-through shrouds
- HCPCS Code: Group 2: Standard (K0822/K0823)
Specification
Size
- Overall Dimensions:
- With Footplate: 41" l x 22" w (104x56cm)
- Without Footplate: 35" l x 22" w (89x56cm)
- Standard Seat Dimensions:
- 16" x 16" - 18 (41x41-46cm)
- 18" x 18" - 20 (46x46-51cm)
- 20" x 18" - 20 (51x46-20cm)
- Seat-to-Floor Range: 19.75" - 21.25" (50-54cm)
- Maximum Seat Size: 20" (51cm)
- Turning Radius: 22" (56cm)
- Wheel Size:
- Front Wheels Solid: 5" (13cm)
- Drive Wheels Solid: 13" (33cm)
- Rear Wheels Casters: 5" (13cm)
- Ground Clearance at motor bracket: 3" (8cm)
Details
- Maximum Speed: Up to 5.1 mph
- Drivetrain: Two motor, in-line, mid-wheel drive
- Braking System: Regenerative and electro-mechanical
- Suspension Type: Active-Trac (ATX)
- Standard Electronics: 40A, PG GC3
- Battery Charger: 3.5 amp, off-board
- Standard Seat Sizes Type: High-Back
- Battery Size(s): (2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate
- Seat Weight(s):
- 16": 46 lbs.
- 18": 48 lbs.
- 20": 50 lbs.
- Battery Weight:
- (2) U1-23.5 lbs. each
- (1)Lithium - 18.5 lbs.
- Range Per Charge:
- SLA- up to 14 miles (300 lbs.)
- SLA-up to 17.1 miles (200 lbs.)
- Lithium up to 17.6 miles (300 lbs.)
- Lithium up to 21 miles (200 lbs.)
- Weight of Heaviest Piece: 94 lbs. (base)
- Total Weight:
- SLA: 189 lbs.
- Lithium: 160.5 lbs.
- Weight Capacity: 300 lbs.
- Warranty:
- Frame: 5-year limited
- Drivetrain: 13-month limited
- Electronics: 13-month limited
- Batteries: 13-month limited (SLA)
- 3-year limited (Lithium)
